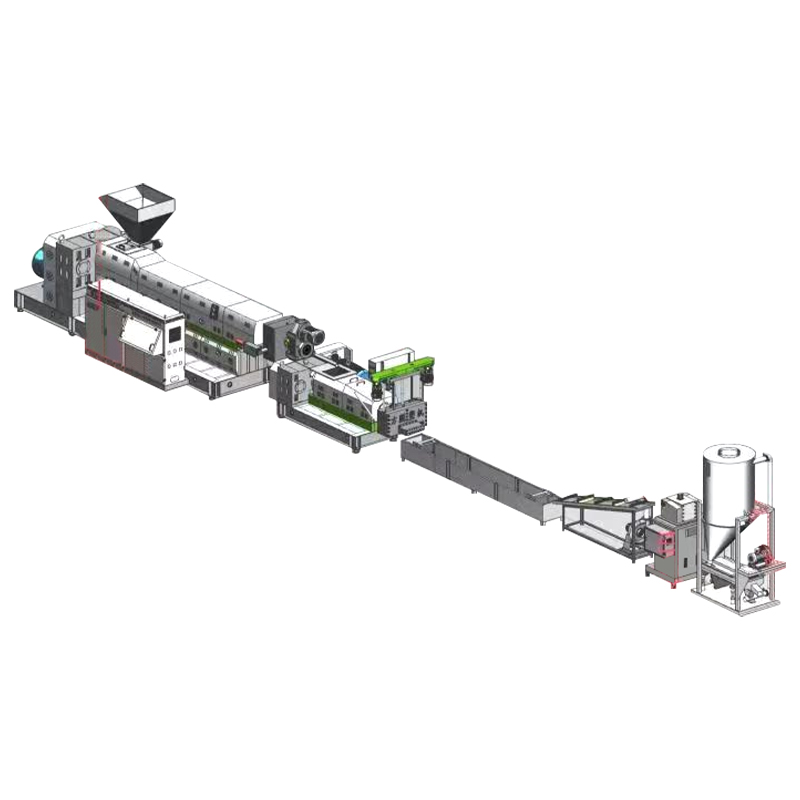

The main technical parameters of the equipment
Product Name |
Specification |
Quantity |
180 Mainframe |
315 hardened gear reducer Jiangsu Changzhou, 175 * 3.8m screw film special, 350 double-net electric die head, vertical electric cabinet a Chint electrical appliances, Huibang temperature control table, 90kw motor, 90KW frequency conversion, the appearance of the whole box |
One |
Compacting bin |
720 type, PP film material, 55kw motor control. |
One set |
Conveyor belt feeder |
5 meters, film special |
One set |
180 Sub-machine |
200 hardened gear reducer, 175 screws, 350 types of single net motor head. 30kw motor, 30kw frequency conversion speed control. |
One set |
Cooling water tank |
4 meters stainless steel cooling water tank |
One set |
Blowing rack |
High-pressure fan blowing, 2.5 meters stainless steel |
One |
Pelletizer |
Gantry 600 type, alloy hob, frequency conversion speed control. |
One |
Stainless steel bin |
High-pressure fan, stainless steel storage tank |
One |
Application fields of granulator
Granulator is widely used in the production of biomass energy, food, medicine, chemical industry, agriculture, and other fields. The following is an introduction to the application of granulators in different fields:
1. biomass energy production field: making biomass pellet fuel, as a kind of clean and renewable energy, widely used in home heating and industrial production.
2. food production field: making millet, cornstarch, cookies, and other food raw materials to improve the taste and quality.
3. Pharmaceutical production field: making drug pellets, making drug absorption faster and more effective, especially for oral drugs.
4. Chemical production field: making granular chemical raw materials, such as plastic, rubber, and other materials.
5. Agricultural production: make feed particles, improve the efficiency of animal husbandry, and reduce the waste of resources.
The working principle of granulator
The working principle of the granulator is mainly different raw materials for extrusion, cutting, grinding, and other operations, so that it forms different sizes and shapes of particles. Specifically, its workflow includes the following stages:
1. Preparation (feeding): The raw materials are fed into the machine, usually using a vibrating feeding device.
2. pressing (compaction): extruding the material into granular material, usually through two rotating rollers.
3. slicing: The long strips of material are cut into different lengths using a cutting mechanism.
4. grinding (grinding): grinding, leveling, and other processing of particles to obtain the desired shape and size.
Fourth, the classification of granulator
Granulators can be classified according to different working principles and applications. The following are several common classifications of granulators:
1. Pressing into type:
(1) roller type granulator: extrusion by two rotating rollers.
(2) Plate-type pelletizer: extrusion and cutting through two rotating rollers and a set of plates.
2. Application fields:
(1)Pharmaceutical granulator: specially used for granulation in the pharmaceutical field.
(2)Pelletizer for foodstuffs: specially used for pelletizing in the foodstuffs industry.
(3)Granulator for biomass energy: specialized in producing biomass pellet fuel.
(4) Granulator for the chemical industry: specializing in the production of granular chemical raw materials.
A granulator is a very practical machine and equipment, its role can not only improve the utilization rate of materials, but also improve its fluidity, reduce the amount, increase stability, and so on. At the same time, the granulator also has a wide range of applications in several industry sectors, including food, medicine, chemicals, agriculture, and so on. This article on the role of granulator, application, and classification to make a detailed analysis, hopes to provide readers with useful reference and guidance.
