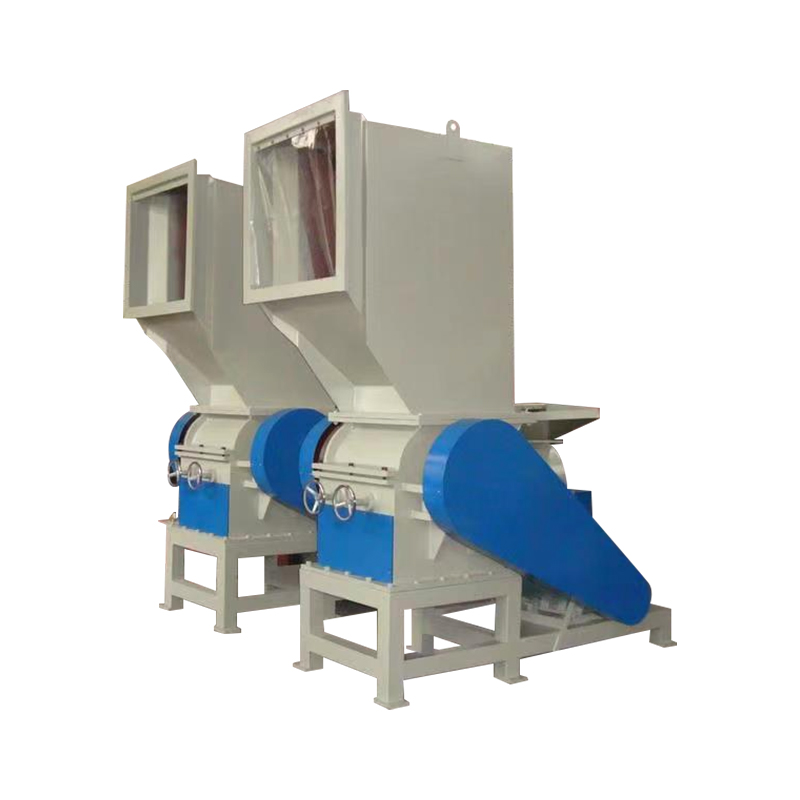

Custom Plastic Crusher Machine

Home / Product / Plastic Crusher Machine
Categories
Contact Us
Submit
Plastic Crusher Machine
Plastic Crusher Machine
Plastic Crusher Machine
Plastic Crusher Machine

Plastic Crusher Machine

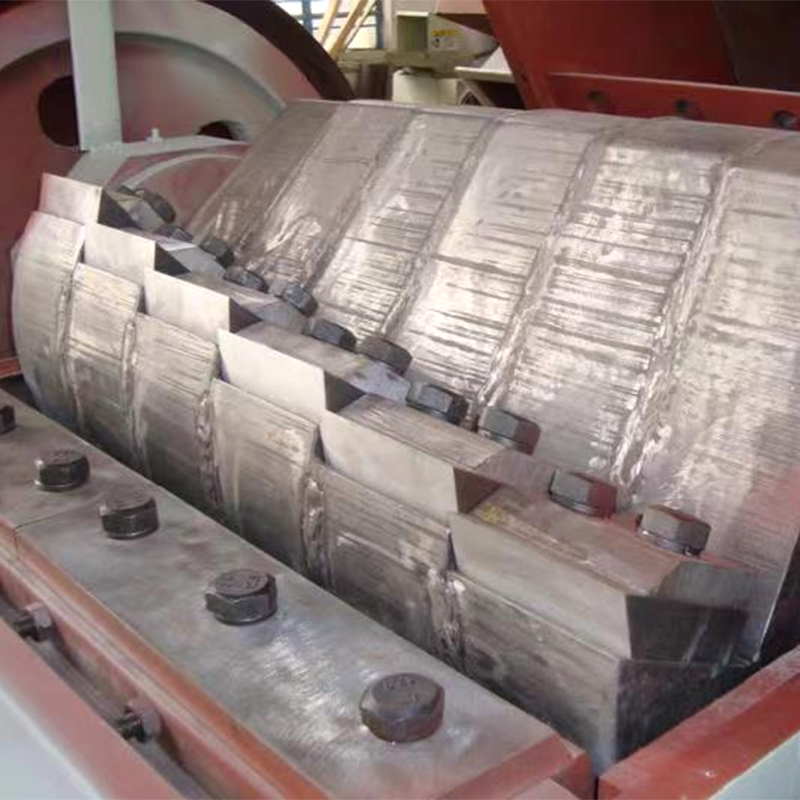

Main technical features: 1, chassis: The crusher chassis is divided into upper and lower parts by the central line, and the upper part can be opened easily, which is convenient for replacing knives and equipment maintenance. The thickness of the main board of the chassis is 25mm, and the thickness of the fixed knife plate is 40mm. 2、Rotor: the main shaft is processed by 45# steel, the knife frame is processed by 45# steel, and the whole rotor is tested by static and dynamic balance. The spindle diameter is 140mm. 3、Bearing and bearing seat: The bearing seat adopts a double-sided sealing structure and is easy to dismantle, the bearing and bearing seat is independent of the outer side of the chassis, which can effectively prevent dust and dirt from entering into the bearing. The bearing adopts heavy-duty spherical roller bearing. 4. The chassis is opened by a cylinder with a large opening angle, which is convenient for cleaning the chassis and replacing the knives.
Get A Quote
PREV：GranulatorNEXT：Geotextile strength machine
  • Product Details
  • Contact Us
  • Heavy-duty crusher configuration
    Model: GSZ450/600 heavy-duty crusher
    Rotor Diameter: ￠450mm
    Rotor length: 600mm
    Rotary tool: 3*6
    Fixed knives: 2*2
    Cutter material: 9GrSi
    Rotor structure: using advanced Z-cutting technology
    Host power: 30KW or 37KW
    Screen aperture: ￠12mm (please specify if required)
    Chassis opening: cylinder system opening
    Weight of the whole machine: about 3.5 tons
    Overall dimension: about 2500*1400*3000mm

Related Products

About
Jiangsu Saide Machinery Co., Ltd.
Jiangsu Saide Machinery Co., Ltd. covering an area of 50,000 square meters and a construction area of 25,000 square meters, our mainly engaged in research, development, production, promotion and application of the geosynthetics equipment. Our company passes the ISO9001:2000 international quality management system certification and has successfully developed internationally advanced uniaxial stretching devices for geogrid, biaxial stretching devices for geogrid, composite geomembrane devices and geomembrane (piece) devices, and post-processing device for fiberglass (chemical fiber) geogrid, with the help and cooperation of well-known experts, research institutions and professional supporting manufacturers both at home and abroad, which meets the requirement for the equipment for civil engineering materials both at home and abroad, and thoroughly changes the situation of import of the equipment. As a professional Plastic Crusher Machine manufacturer and Plastic Crusher Machine supplier, We are equipped with professional, vigorous and hardworking engineering and technical team that specializes in mechanical equipment and electrical installation and debugging services, and provides customers with free training on-site operation and maintenance personnel. The products produced by the above production lines feature strong tensile strength and small yield and elongation percentage, which are well received by the users at home and abroad.
Certificate Of Honor
  • Certificates
  • Certificates
  • Certificates
  • Patent Certificate
  • Patent Certificate
  • Patent Certificate
  • Patent Certificate
  • Patent Certificate
  • Patent Certificate
News
Message Feedback
Related products
  • Steel plastic geogrid
    Steel plastic geogrid

    Steel-plastic geogrid is a key geosynthetic material. It consists of high-strength steel wire (or other fibres) after special treatment, mixed with polyethylene (PE) or polypropylene (PP) and other ad...

    See Details
  • Bidirectional geogrid
    Bidirectional geogrid

    Bidirectional geogrids are made from polymers that are extruded, sheeted and perforated through a process followed by longitudinal and transverse stretching. The material has great tensile strength in...

    See Details
  • Fiberglass geogrid
    Fiberglass geogrid

    Product introductionGlass fiber grille is a kind of plane network material, which is made of high-quality reinforced alkali-free glass fiber yarn, woven by a foreign advanced warp knitting machine, ad...

    See Details
  • Unidirectional stretch plastic geogrid
    Unidirectional stretch plastic geogrid

    One-way stretch plastic geogrid introduction: One-way stretch plastic geogrid is a kind of high polymer as the main raw material, adding certain anti-ultraviolet, anti-aging additives, after one-way s...

    See Details
  • YN self-adhesive anti-crack patch
    YN self-adhesive anti-crack patch

    YN self-adhesive crack prevention sticker (YN crack prevention paste) is a kind of reinforced fiber material with good bending resistance, high tensile strength, and permanent anti-corrosion, which co...

    See Details
Industry knowledge Extension
How to maintain and maintain the plastic crusher machine?
The maintenance and upkeep of plastic crusher machine is crucial to ensure long-term stable operation and extended service life of the equipment. The following is a detailed introduction on how to maintain and maintain plastic crushers:
Regular cleaning:Regular cleaning is an essential step in keeping your plastic crusher machine operating properly. Operators should regularly remove accumulated dust, debris and residue from the surface and interior of the equipment, especially in the area around the cutters and crushing chamber. Make sure the device is powered off during the cleaning process and use appropriate tools and cleaning agents to prevent damage to the device.
Tool maintenance:The cutter is a key component of the plastic crusher machine, and its maintenance is crucial to ensure the crushing effect and work efficiency of the equipment. Operators should regularly check the wear of the cutting tools and replace seriously worn cutting tools in a timely manner to ensure crushing effect and safety. At the same time, when replacing the tool, follow the requirements of the equipment operation manual, and pay attention to the installation direction and fixation method of the tool to ensure that the installation is correct and firm.
Lubrication maintenance:Lubrication maintenance of equipment is essential to reduce friction, reduce energy consumption and extend equipment life. Operators should regularly check the lubrication system of the equipment, including bearings, transmission components, etc., to ensure that the lubricating oil is sufficient and of good quality. At the same time, the lubricating oil should be replaced regularly according to the requirements of the equipment operation manual, and attention should be paid to cleaning and maintaining the lubrication system to ensure its normal operation.
Electrical system inspection:The electrical system is an important part of the plastic crusher machine, and its stable operation is crucial to the normal operation of the equipment. Operators should regularly check the electrical system of the equipment, including motors, electrical control cabinets, wiring terminals, etc., to ensure that the electrical connections are good and there are no short circuits, leakage and other problems. At the same time, the surface of electrical equipment should be cleaned regularly to prevent malfunctions caused by dust accumulation and moisture.
Safety equipment inspection:Safety equipment is key to operator safety and should be inspected and maintained regularly to ensure proper operation. This includes the inspection and debugging of safety equipment such as safety shields, emergency stop buttons, and safety sensors to ensure that they can function promptly and effectively, and that they can be repaired or replaced in a timely manner when faults are discovered.
Regularly check the operating status of the equipment:Operators should regularly check the operating status of the equipment, including the operation of key components such as rotors, bearings, and transmission systems, and detect and handle abnormal phenomena in a timely manner to prevent the occurrence and expansion of faults.
