Unidirectional stretch plastic geogrid
Unidirectional stretch plastic geogrid
Unidirectional stretch plastic geogrid
Unidirectional stretch plastic geogrid
Unidirectional stretch plastic geogrid
Unidirectional stretch plastic geogrid

Unidirectional stretch plastic geogrid

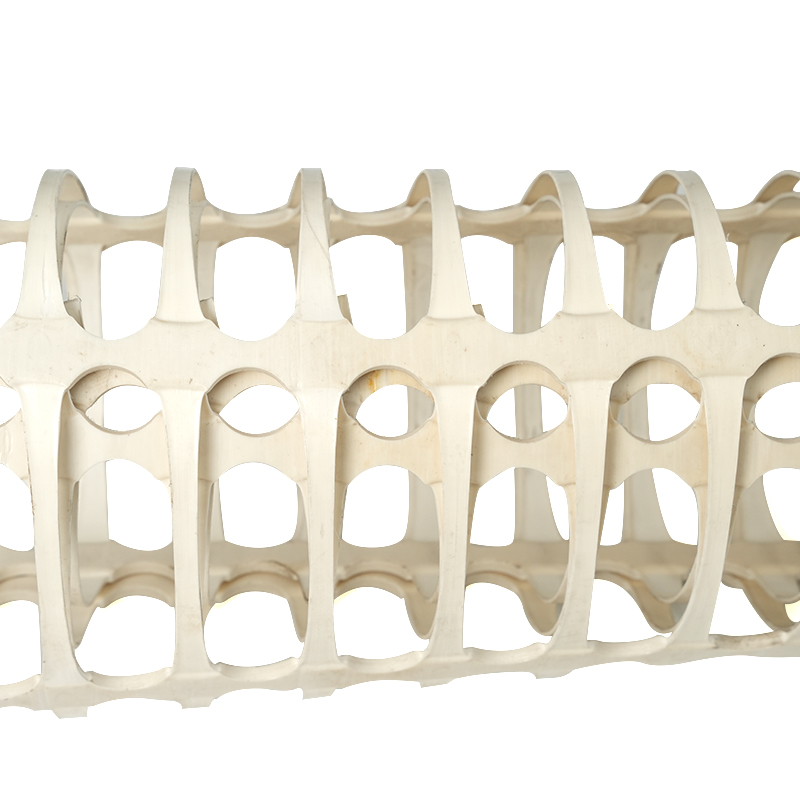

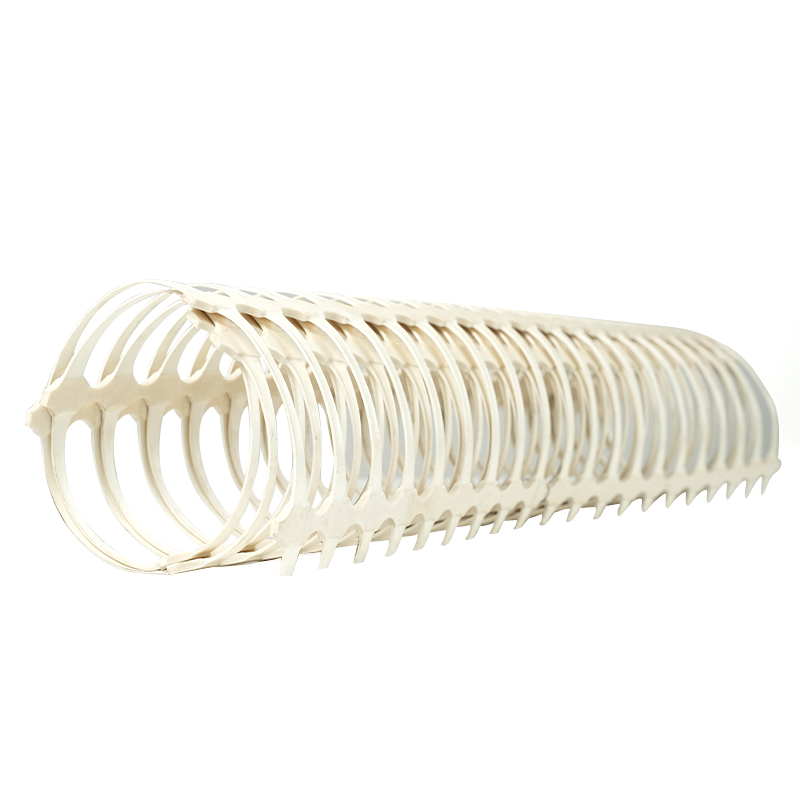

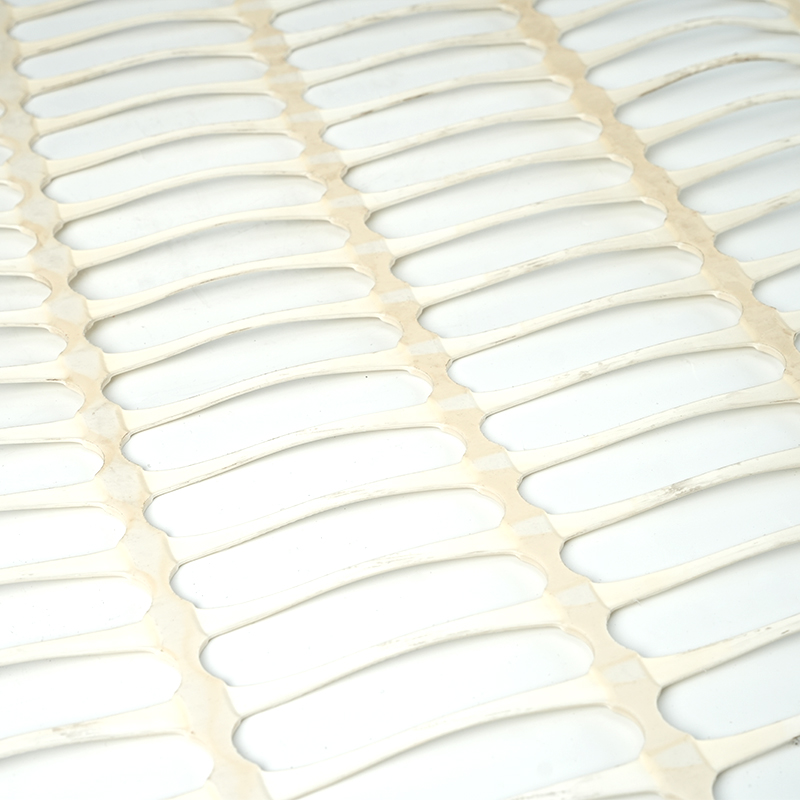

One-way stretch plastic geogrid introduction: One-way stretch plastic geogrid is a kind of high polymer as the main raw material, adding certain anti-ultraviolet, anti-aging additives, after one-way stretching to make the original distribution of scattered chain molecules re-directional arrangement of linear state of high-strength geosynthetics. Greatly good to traditional or existing reinforcing materials, is the very ideal civil engineering reinforcement, reinforcing reinforcement synthetic materials. Application areas: 1, unidirectional tensile plastic geogrid is a high-strength structural material, suitable for highways, municipal roads, railways, airstrips, and other roadbed reinforcement. 2, It is suitable for the embankment enhancement of river and sea dams. 3, It is suitable for the fencing of orchards, vegetable fields, livestock, land, etc. It is safe and convenient to use, and easy to dismantle and install, which is beautiful and generous. 4, It is suitable for the reinforcement of highways, municipal roads, railways, airstrips, and the reinforced soil retaining walls along rivers and coasts.
Get A Quote
PREV：YN self-adhesive anti-crack patchNEXT：Fiberglass geogrid
  • Product Details
  • Contact Us

  • Reference technical standards

    Specifications\Items QC tensile strength (1) (KN/M) Tensile force (1) measured by quality control tensile test (KN/M) peak value
    Strain
    (%)    		 Creep limit strength (2)
    (KN/M)
    2% strain 5% strain 10℃（3） 20℃（3）
    40RE 52.5 12.7 24.7 11.5 23 21
    55RE 64.5 16.1 30.9 11.5 28.5 25.5
    80RE 88 23.7 45.2 11.5 38.5 34
    120RE 136 38 75.5 11.5 55 49

    Specifications\Items Raw materials (polymers)1 Minimum carbon black content 2 percent Grammage (kg/m2) Roll width (m)
    elder surname Kuan on demand
    40RE PP、HDTE 2 0.29 50-100 1.5-1.6
    55RE PP、HDTE 2 0.4 50-100 1.5-1.6
    80RE PP、HDTE 2 0.6 50-100 1.5-1.6
    120RE PP、HDTE 2 1 50-100 1.5-1.6

    Unidirectional tensile plastic geogrid specification performance table GB/T17689-1999


    Product Use

    Product Specification TGDG25 TGDG35 TGDG50 TGDG80 TGDG110 TGDG130 TGDG180 TGDG260
    Item
    Tensile yield force per linear meter, KN/m≥ 25 35 50 80 110 130 180 260
    Yield elongation, % ≤ 12
    Tensile force at 2% elongation, KN/m≥ 6 9 10 23 30 39 60 98
    Tensile force at 5% elongation, KN/m≥ 12 18 25 44 60 77 107 142
    Creep ultimate strength, KN/m≥ 11 15 21 30.2 41 49 64.8 102.5
    Product characteristics
    1、 High unidirectional tensile strength, good creep resistance, and stable chemical properties;
    2、 Large friction coefficient with gravel.
    Scope of application
    1、 It is mainly used in retaining walls, bridge abutments, and steep slope projects;
    2, retaining wall and bridge abutment belong to the force structure body, and bear all the external loads: active soil pressure, dynamic load on the upper part of the structure, temperature stress, etc., the reinforced material is under the action of large tension for a long time, as well as the repeated action of dynamic load, the molecular structure of the material produces fatigue, the performance of its attenuation, accelerate the aging of the grille. To avoid the structure due to the creep of the reinforced material and produce large deformation, high-density polyethylene (HDPE) as the raw material of the unidirectional geogrid.
    Construction method
    When used for road base and road surface, the construction method is the same as two-way geogrid.
    When used for reinforced soil retaining wall, the construction method is as follows:

    1. Set up the foundation and construct it according to the designed wall system. When the prefabricated reinforced concrete panel is elected, it is generally 12-15cm thick and supported on the prefabricated concrete foundation. Its width is not more than 30㎝, thickness is not less than 20㎝, and depth is not less than 60㎝ to prevent the influence of frozen foundation.

    2. Leveling the wall foundation, excavating, and leveling according to the design requirements. Soft soil needs to be compacted or refilled, compacted to the required density and should be slightly beyond the range of the wall surface.

    3. Laying of reinforcement material, the main strength direction of the reinforcement material should be perpendicular to the wall surface, and fixed with pins.

    4. The wall is filled with soil by machinery, and the distance between the wheels and the reinforcement material should be kept at least 15 cm. The thickness of one layer of soil after compaction is about 20-15 cm.

    5. When the wall is constructed, the wall surface should be wrapped with geotextile fabric to prevent leakage of earth filling.

Related Products

About
Jiangsu Saide Machinery Co., Ltd.
Jiangsu Saide Machinery Co., Ltd. covering an area of 50,000 square meters and a construction area of 25,000 square meters, our mainly engaged in research, development, production, promotion and application of the geosynthetics equipment. Our company passes the ISO9001:2000 international quality management system certification and has successfully developed internationally advanced uniaxial stretching devices for geogrid, biaxial stretching devices for geogrid, composite geomembrane devices and geomembrane (piece) devices, and post-processing device for fiberglass (chemical fiber) geogrid, with the help and cooperation of well-known experts, research institutions and professional supporting manufacturers both at home and abroad, which meets the requirement for the equipment for civil engineering materials both at home and abroad, and thoroughly changes the situation of import of the equipment. As a professional Unidirectional stretch plastic geogrid manufacturer and Unidirectional stretch plastic geogrid supplier, We are equipped with professional, vigorous and hardworking engineering and technical team that specializes in mechanical equipment and electrical installation and debugging services, and provides customers with free training on-site operation and maintenance personnel. The products produced by the above production lines feature strong tensile strength and small yield and elongation percentage, which are well received by the users at home and abroad.
Certificate Of Honor
  • Certificates
  • Certificates
  • Certificates
  • Patent Certificate
  • Patent Certificate
  • Patent Certificate
  • Patent Certificate
  • Patent Certificate
  • Patent Certificate
News
Message Feedback
Related products
  • Steel plastic geogrid
    Steel plastic geogrid

    Steel-plastic geogrid is a key geosynthetic material. It consists of high-strength steel wire (or other fibres) after special treatment, mixed with polyethylene (PE) or polypropylene (PP) and other ad...

    See Details
  • Bidirectional geogrid
    Bidirectional geogrid

    Bidirectional geogrids are made from polymers that are extruded, sheeted and perforated through a process followed by longitudinal and transverse stretching. The material has great tensile strength in...

    See Details
  • Fiberglass geogrid
    Fiberglass geogrid

    Product introductionGlass fiber grille is a kind of plane network material, which is made of high-quality reinforced alkali-free glass fiber yarn, woven by a foreign advanced warp knitting machine, ad...

    See Details
  • Unidirectional stretch plastic geogrid
    Unidirectional stretch plastic geogrid

    One-way stretch plastic geogrid introduction: One-way stretch plastic geogrid is a kind of high polymer as the main raw material, adding certain anti-ultraviolet, anti-aging additives, after one-way s...

    See Details
  • YN self-adhesive anti-crack patch
    YN self-adhesive anti-crack patch

    YN self-adhesive crack prevention sticker (YN crack prevention paste) is a kind of reinforced fiber material with good bending resistance, high tensile strength, and permanent anti-corrosion, which co...

    See Details
Industry knowledge Extension
What Are the Environmental Benefits of Using Unidirectional Stretch Plastic Geogrid?
Unidirectional stretch plastic geogrid, a specialized geosynthetic material, offers a multitude of environmental benefits when utilized in civil engineering and construction projects. As society increasingly prioritizes sustainability and eco-conscious practices, understanding the environmental advantages of this innovative material becomes paramount.
1. Reduced Environmental Footprint:One of the primary environmental benefits of using unidirectional stretch plastic geogrid lies in its ability to reduce the overall environmental footprint of construction projects. Traditional methods of soil stabilization and reinforcement often involve extensive excavation, transportation of heavy materials, and significant disturbance to natural landscapes. In contrast, geogrids require minimal excavation and can be installed with fewer heavy machinery and resources.
2. Preservation of Natural Resources:Unidirectional stretch plastic geogrid minimizes the depletion of natural resources by offering a more efficient alternative to traditional construction materials. For instance, in soil retaining structures, geogrids reduce the need for conventional materials such as concrete, steel, and aggregates, which are often sourced through resource-intensive mining and quarrying processes.
3. Erosion Control and Soil Conservation:Erosion poses a significant threat to soil quality and ecosystem health, leading to loss of arable land, sedimentation of water bodies, and degradation of natural habitats. Unidirectional stretch plastic geogrid plays a crucial role in erosion control by stabilizing soil surfaces and preventing soil displacement caused by wind, water, or gravitational forces. When incorporated into erosion control measures such as retaining walls, embankments, and slope stabilization systems, geogrids help maintain soil integrity, reduce sediment runoff, and protect fragile ecosystems from degradation.
4. Improved Water Management:Effective water management is essential for mitigating the adverse impacts of floods, droughts, and water scarcity on both natural and human-made environments. Unidirectional stretch plastic geogrid contributes to improved water management by enhancing the infiltration and drainage characteristics of soil profiles. By reinforcing soil structures and promoting uniform water distribution, geogrids help prevent waterlogging, control runoff, and facilitate groundwater recharge.
5. Long-Term Durability and Performance:The long-term durability and performance of unidirectional stretch plastic geogrid further contribute to its environmental benefits. Unlike traditional materials that may degrade over time due to corrosion, weathering, or biological decay, geogrids are engineered to withstand harsh environmental conditions and maintain their structural integrity for extended periods.
6. Promotion of Sustainable Land Use Practices:By facilitating the implementation of sustainable land use practices, unidirectional stretch plastic geogrid supports ecosystem resilience and biodiversity conservation. Whether applied in agricultural terracing, reclamation of degraded land, or restoration of natural habitats, geogrids provide a versatile solution for addressing land management challenges while minimizing ecological disturbance. Moreover, the integration of geogrids with revegetation efforts promotes the establishment of native plant species, enhances soil fertility, and creates habitat corridors for wildlife, contributing to ecosystem restoration and conservation goals.
7. Energy Efficiency and Carbon Reduction:Reducing energy consumption and carbon emissions is paramount in combating climate change and achieving global sustainability objectives. Unidirectional stretch plastic geogrid contributes to energy efficiency by streamlining construction processes, reducing transportation distances, and minimizing the use of heavy machinery.
